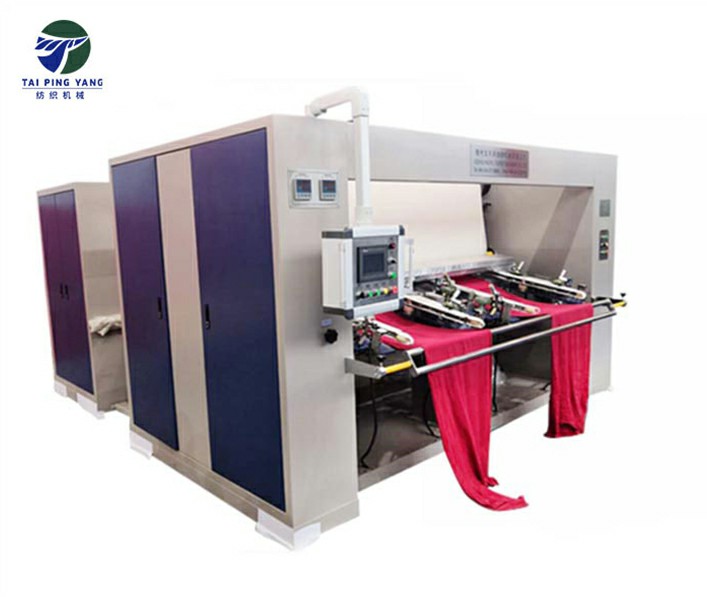

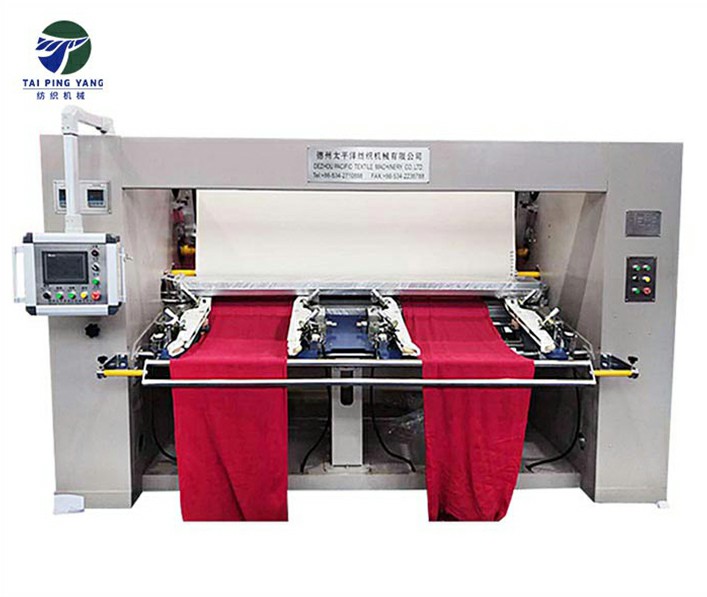

Double pass tubular compactor

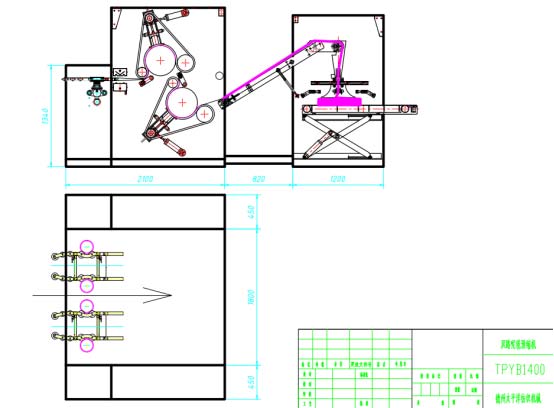

Drawing design:

Mainly parameters:

Working width	Telescopic rod shuttles:350~1200mm (drying cylinder length is 1700mm) Maglev separation shuttles:800~1500mm
Mechnical speed	3~30m/min
Technical speed	15~25m/min（depends on technical process）
Drying cylinder temperature	120℃～180℃（steam 120℃）
Temperature control precise	±1℃
Machine install power	46.02kw（electric oil）(actual consumption during work 25kw)
MachineDimension（LXWXH）	7382X2950X2250mm
Machine weight	About 5.5tons

Technical route:

Constant tension fabrics infeeding Telescopic rod shuttles expanding(maglev separation shuttles expanding) Steaming and moisturing Two felts compacting and setting Precise folding（rolling）
