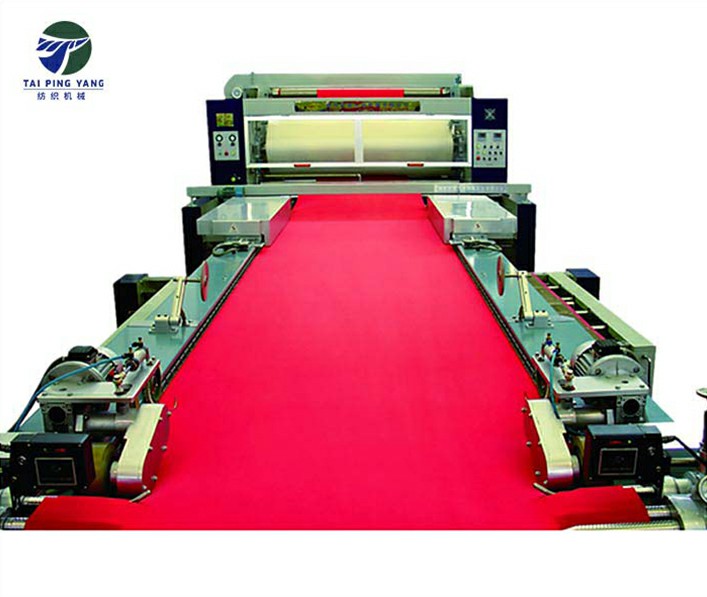

Open width compactor with 20mm blanket

Machine Usage:

This machine is used for compacting process of knitting fabrics. After worked by the machine,fabrics will get good hand feeling,eliminate wrinkles of the fabrics, reduce washing shrinkage.

Machine technical parameters and specifications:

Nominal width	2800mm
Adjustable width	700-2800mm
Working speed	3-33m/min
Drying cylinder surface temperature	100-140℃
Applicable compressed air pressure	0.1-0.4MPa
Applicable steam pressure	0.3-0.6MPa
Motor drive power	30KW
Electric heat power	33KW
Dimension	15615mmX3600mmX2600mm
Machine weight	15T

Drawing design：

Machine advantages:

● Tenter frame is vertical guide rail,which is easy to control the working width stability.

● The distance between the pins and felt is very small(coz of the vertical guide rail structure),hence,fabrics are easy to get good washing shrinkage.

● Germany brand digital type tension sensor, which could display the tension value of the fabrics from tenter frame to felt on the touch screen, and the machine could adjust the speed to adjust the tension automatically. So it could control the tension of the fabrics.

● Two pieces felt with 270 degree wrap angle,Big compacting area,better compacting result.

● Equips coolant air device,thus,fabrics could get stable size

Technical flow:

Slide centering -- Edge detective device--flat plate edge spreading device--fabrics guiding device -- infeeding pin on system--steaming box -- tentering exit--tension sensor--compacting unit--cool air exit-plaiting
