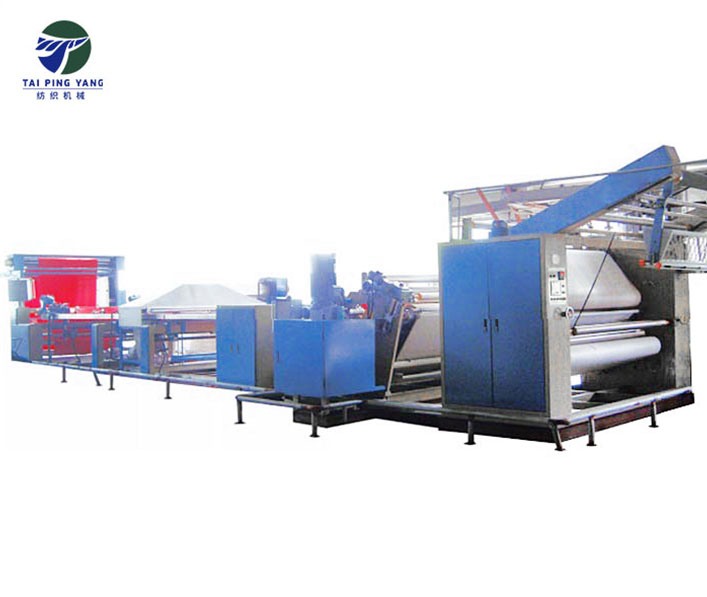

Open width compactor with 20mm blanket and rubber blanket

Application ：

The machine is applicable to fabric’s tentering ,Moistening ,Rubber blanket ,Calendering ,Felt preshrinking ,It makes the fabric obtain stable size and good hand feeling .The rubber blanket calendering unit and the felt preshrinking unit can be combined or you can choose either of them .

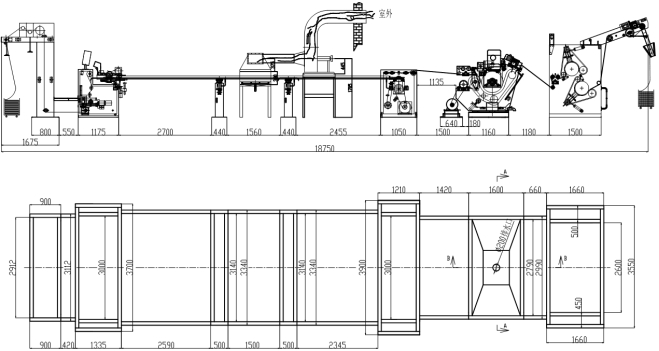

Machine drawing :

Technology parameter :

Chain type	Single layer horizontal chain return type with hot air circulation
Roller width	1600.1800.2000.2200.2400.2600.2800.3000.3200.3400.3800
Normal speed	5-35m/min
Overfeeding range	-10%+30%(upper overfeeding may reach +90% when normal speed is lower than 60m/min
Type of chain rail	Oil free lubricate
Temperature inside temperature	100-220 Degree
Heat source	Steam and electric steam
Edge control system	High precision infra-red type
Fabric held by	Pin. Chain ,or pin+chain combined
Delivery unit	Plaiter ,rolling or combined plaiter /bacher

Technical process Flow :

Fabric flatten enter -screw expanding -Infra red centering -Lower overfeeding -Mechanical weft straightening -Screw expanding -Upper over feeding -Edge uncurling -Pinning on or clipping on -Moisture supplying -Pin of or clip off -Rubber blanket calendering -Felt compacting treatment -cooling Air -Plaiting or rolling
