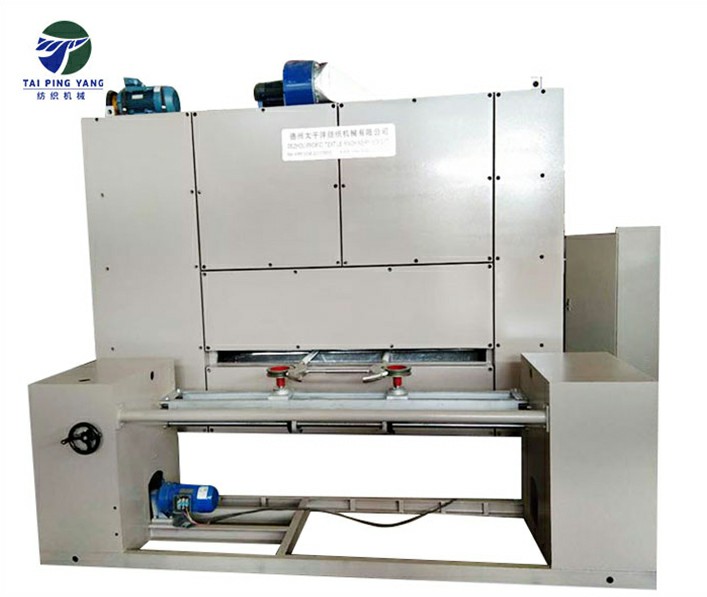

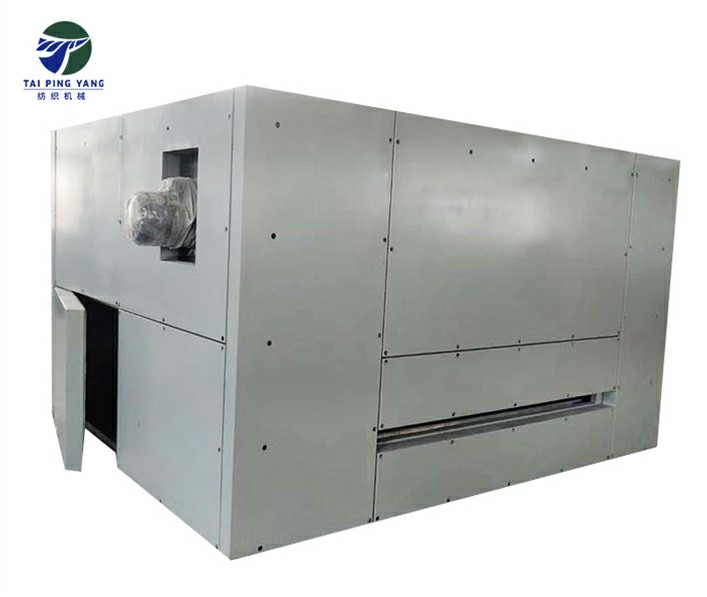

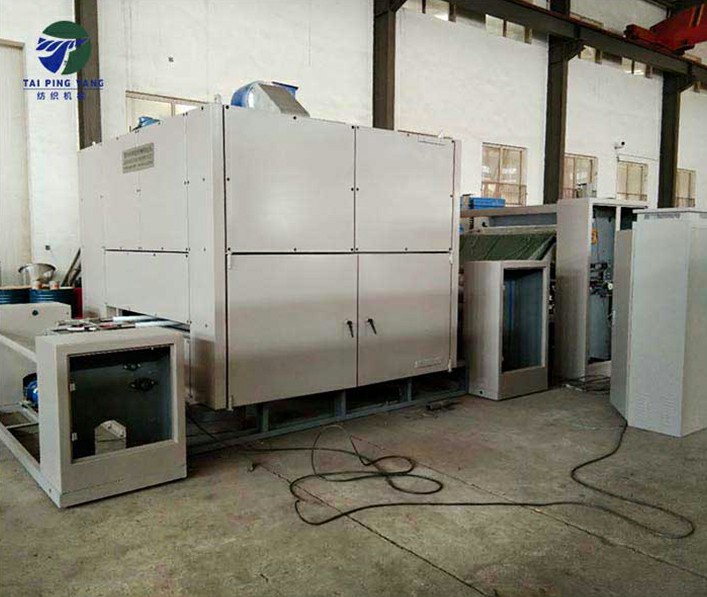

Single tube heat setting machine

Machine usage:

This machine is used for polyester fabrics,it adopts hot air setting,maximum working temperature is 220℃.it is used for heat setting of tubular polyester、blender cotton fabrics. After worked by this machine,customer can get steady size,flat surface.

The machine has three heating mothod: electric,thermal oil,natural gas and liquefied gas,before order the machine,please inform.

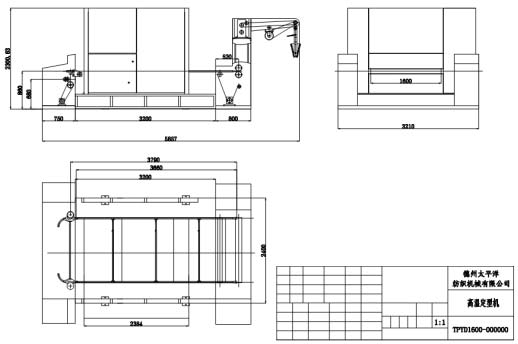

Drawing design：

Machine Parameters

Items	Parameters
Standard working width	Single tube 500mm- 1600mm
Hot air Max.temperature	220℃
Machine main speed	30m/min（speed adjusted by the Inverter ）
Machine overfeeding rate	-50%—+50%
Heating mothod	Electric: when raising the temperature: 132KW; when working70～90KW Thermal oil:when raising the temperature: 120000kcal/H; when working 60000kcal/H Natural gas:When raising temperature: 20M³/H； when working: 7～10M³/H
Drive method	Three section inverter
Fabrics exit	Plaiting,rolling (optional)
Motor power	12.3kW
Applicable compressed air pressure	0.2—0.5MPa
Machine size （LxWxH）	6000×3000×2200mm
Machine weight	About 3.1T

Working process：

Fabric feeding-Steaming box-heat setting chamber -cooling air --plaiting
