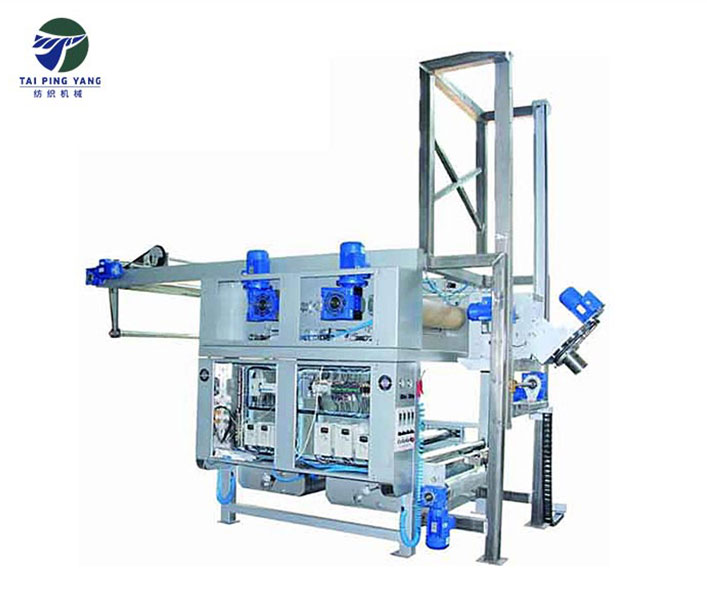

Double dip balloon padder

Machine usage：Without stretcher, frame structure

Stainless Balloon Padding Machine is used for impregnating softening liquid to wet process of double dip the tubular fabric,then padding the residual liqiud. it can replace the traditional process of centrifugal machine and wet expander. It is high efficient and easy to operate. Tubular Balloon Padder is really a 3in1 powerful machine.

Machine Parameters ：

Standard working width	1400mm
Mechanical speed	5-50m/min
Motor power	18kw
Applicable compressed air pressure	0.3-0.6Mpa
Machine weight	5T

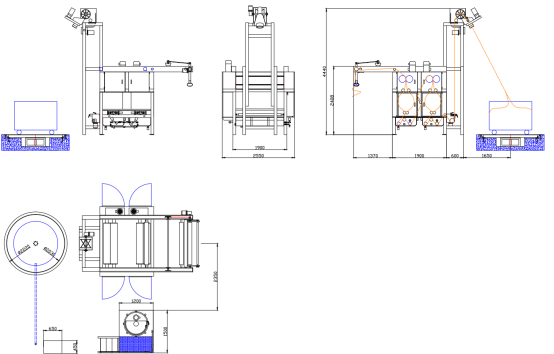

Drawing design :

Working process：

Turn table- detwister head and detwist lifting mechanism-opening mechanism -water squeezing and softener impregnating mechanism -tension adjust mechanism --reservoir and heating device -fabric exit plaiting mechanism (Liquid mixing tank ,Transmission mechanism )
