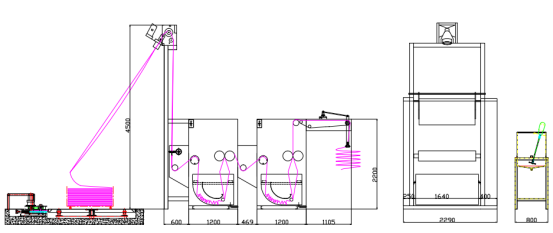

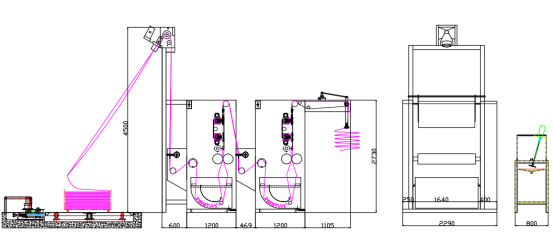

Drawing ：

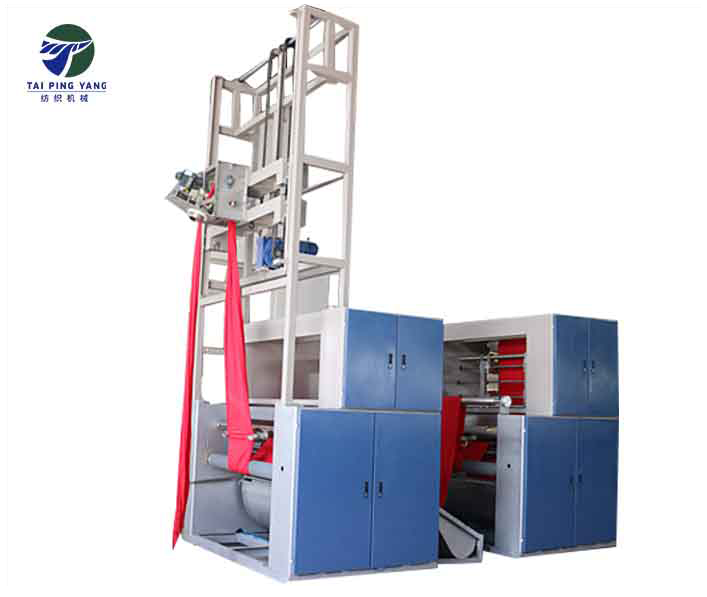

Double balloon padder with stretcher plate.

Double balloon padder without stretcher

Technical parameter：

Instruction :

1. Stainless steel balloon padder machine is used for processing tubular fabric ,especially the cotton material ,It is high efficient and easy to operate

2. The machine could detwist the roped tubular fabric after dyeing or other process ,Then with the help of double dips and padder ,balloon padder could get the effect without any wrinkle on fabrics turning table is driven by electric motor ,It can turn clockwise and anti-clockwise according to detwist purpose .

3. Based on the stainless steel material ,Now it is becoming more and more popular and important during the textile finishing process .

Technical process flow ;

Turn table -detwister head and  detwist lifting mechanism--opening mechanism -water squeezing and softner impregnating mechanism -tension adjust mechanism (stretcher plate type)--reservior and heating device stretcher plate device optional --fabric exit plaiting mechanisam (Liquid mixing tank ,transmission mechanism )
