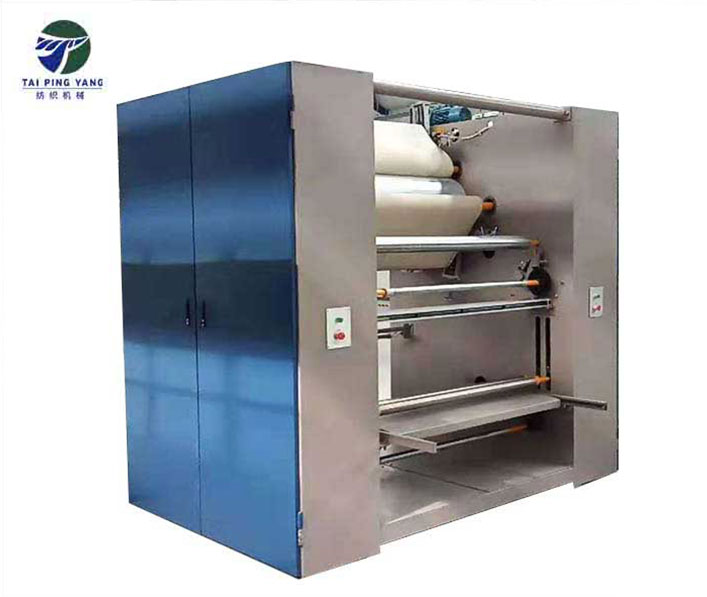

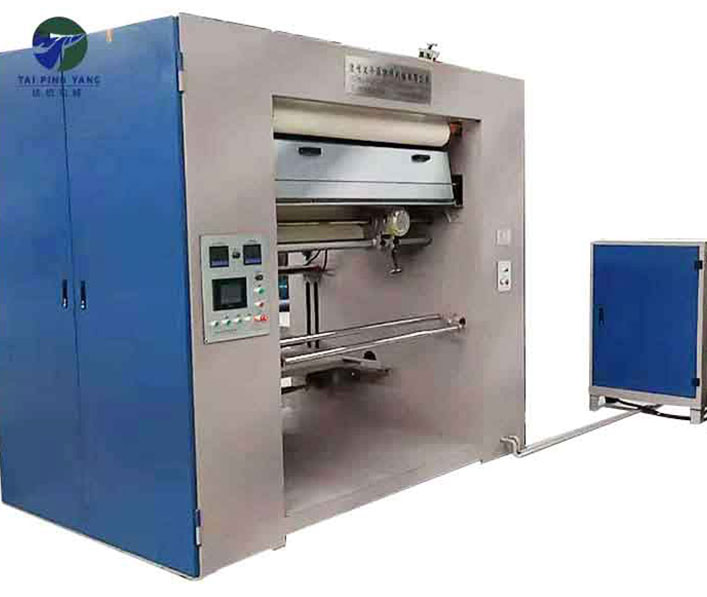

Vertical Soft Calender

Usage of the machine:

This equipment is mainly used for cotton, blender tubular knitting fabrics setting. After worked by the machine, the fabrics will have steady working width, smooth surface and soft hand feeling. High output, easy to operate。

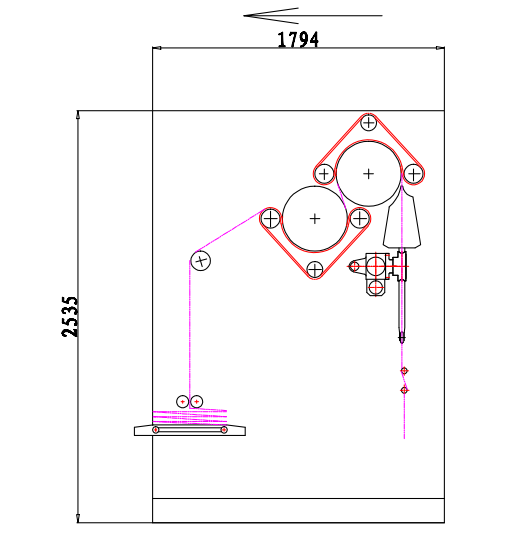

Drawing design：

Technical parameters:

Working width	Single tube: Max 1400 mm (overfeeding wheel inner side distance)
Machincial speed	0--30m/min
Drying cylinder surface working temperature	<200℃
Applicable steam pressure	0.4-0.6MPa
Steam consumption	40Kg/h
Applicable compressed air pressure	0.3-0.6Mpa
Dimension(L×W×H)	2100×2800×2620mm
Motor power	9.74Kw
Drying cylinder heat power	24kW
Machine weight	3.0T

Standard equipment:

1. Consistant infeeding device

The device sonsist of machine frame, active roller, R fabrics storage box, slidepanel, pedal, electrical control system.

2. Overfeeding device and fabrics strecther.

3. Steam moisturing device.

4. Soft setting device

Ring felt 12mm thickness. Electric heated cylinder.

5. Mechnical folding

6. Rolling device

7. Driven device

The machine has 7motors totally, among them four sets are controlled by inverter, working speed is from 3mm to 30mmm/min.

8. Electric control

Delta inverter,Schnaider low voltage.
