Technical parameter:

Introduction

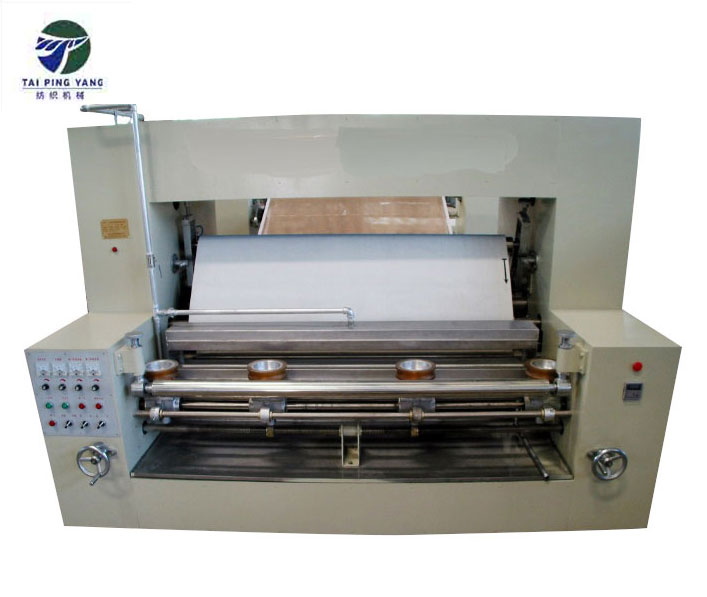

The machine is used for processing cotton and cotton-blend tubular fabric, with reinforced risers, 14 mm thick NOMEX blanket and mechanical folding machine, with machine processing fabric to obtain a stable size and light effects.

The machine model is an inexpensive, Simple structure,convenient operation,srnal; motri o / Sbic can be processed.

The maximum width of the fabric:single 1500 mm. Dual 2x800 mm.

We can provide the following four machine based on different heat sources:Steam, electricity + oil (inner loop).

Steam-heated drying cylinder maximum use temperature was 130°C,maximum use ten linner loop) drying cylinder is more Than 180 C.

Our machine is equipped with 14 mm thick blanket material containing NOMEX,tolerance grinding to withstand high temperatures, do not pollute the fabric, standard machine with 400 mm diameter drying cylinder.

The machine can process thick(three-layer insulation fabrics )fabric.

In addition, we can provide two-way blanket machine with dual mode, when working with a single fabric width mode when machining narrow fabrics.

Structure:

Infeed part(include infeed guider, overfeeding and strectcher part).

Steamer part(cinlude steam box, stainless steel ball valve, air-water seperator, trap).

Roller part.

Presicion folder part.

Driven part.

Electric cabinet.
