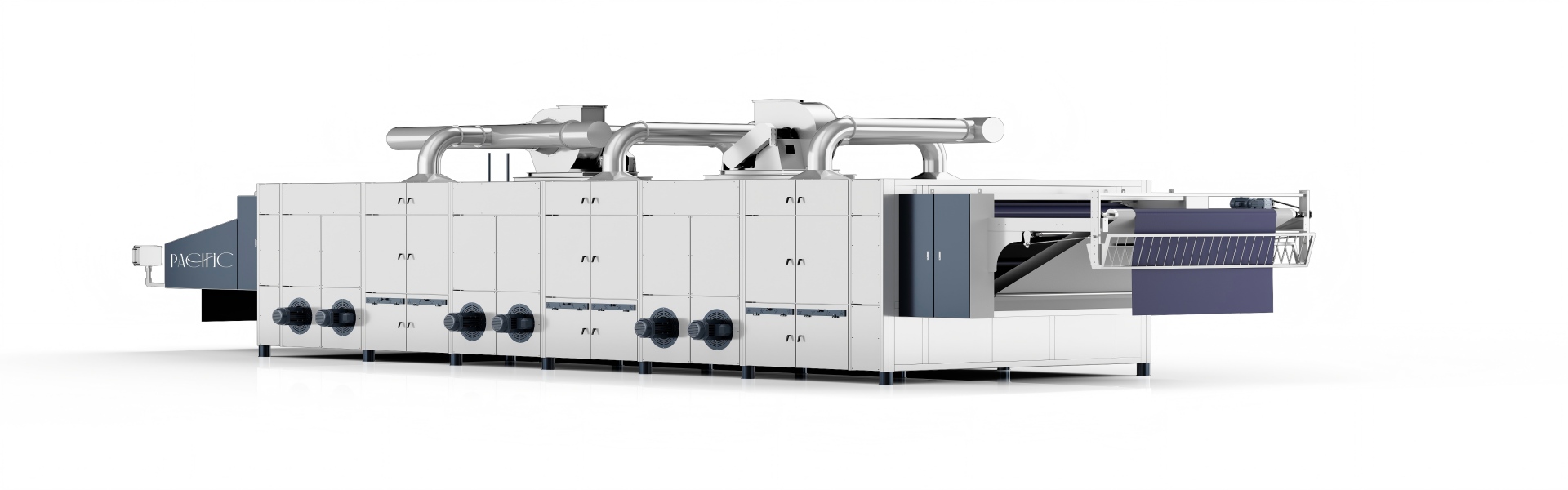

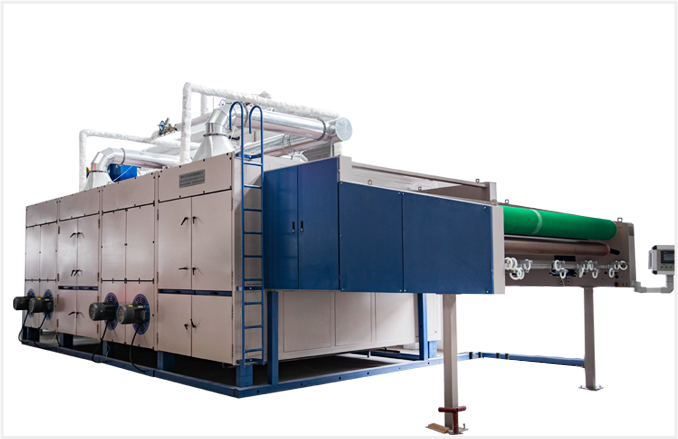

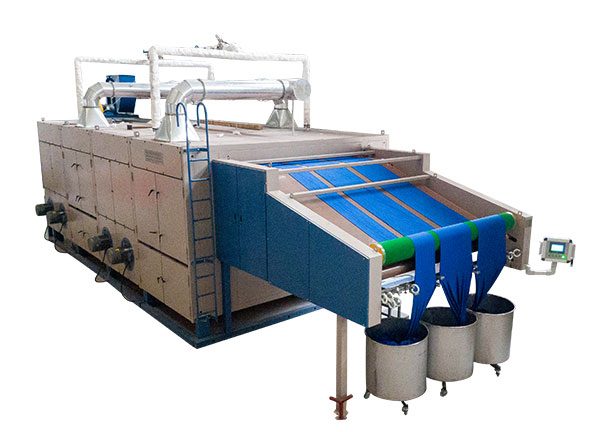

Five Pass Relax Dryer:

Machine usage:

The relax dryer machine is used for tubular and open knitted fabrics drying process. When the works,each pass of the fabrics speed is controlled separately. The fabrics will be running in a fully tensionless status.

The Most Significant Features:

High Output!

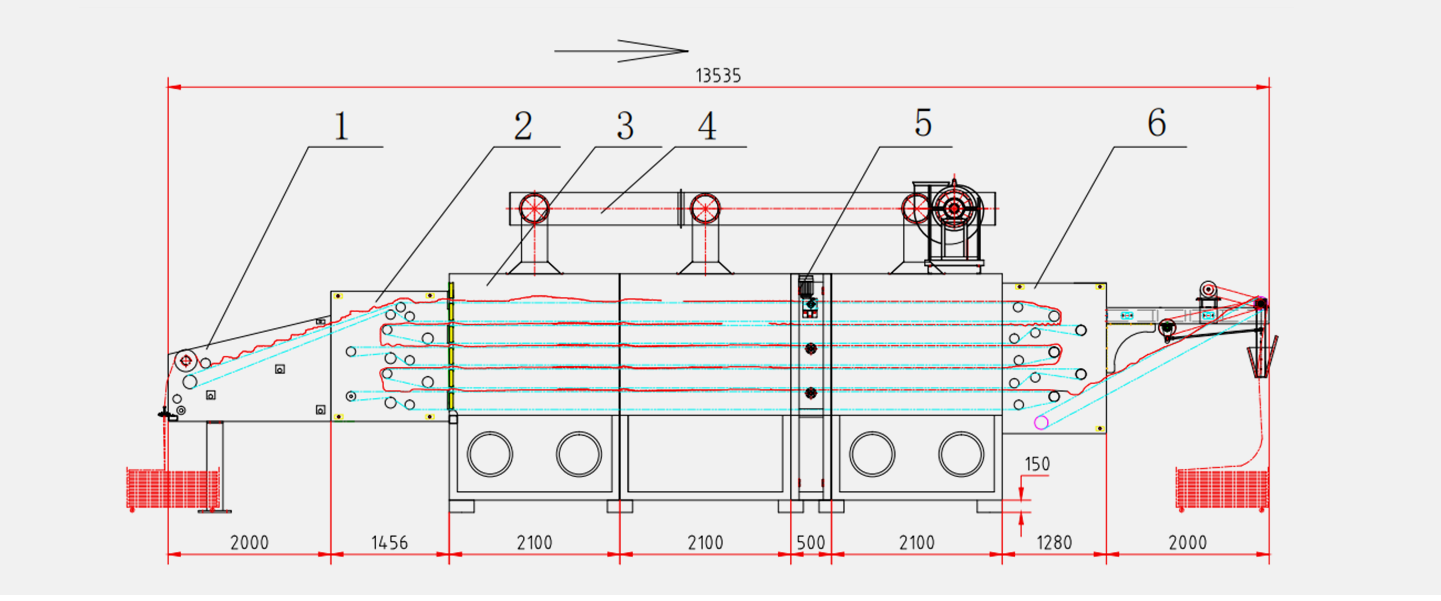

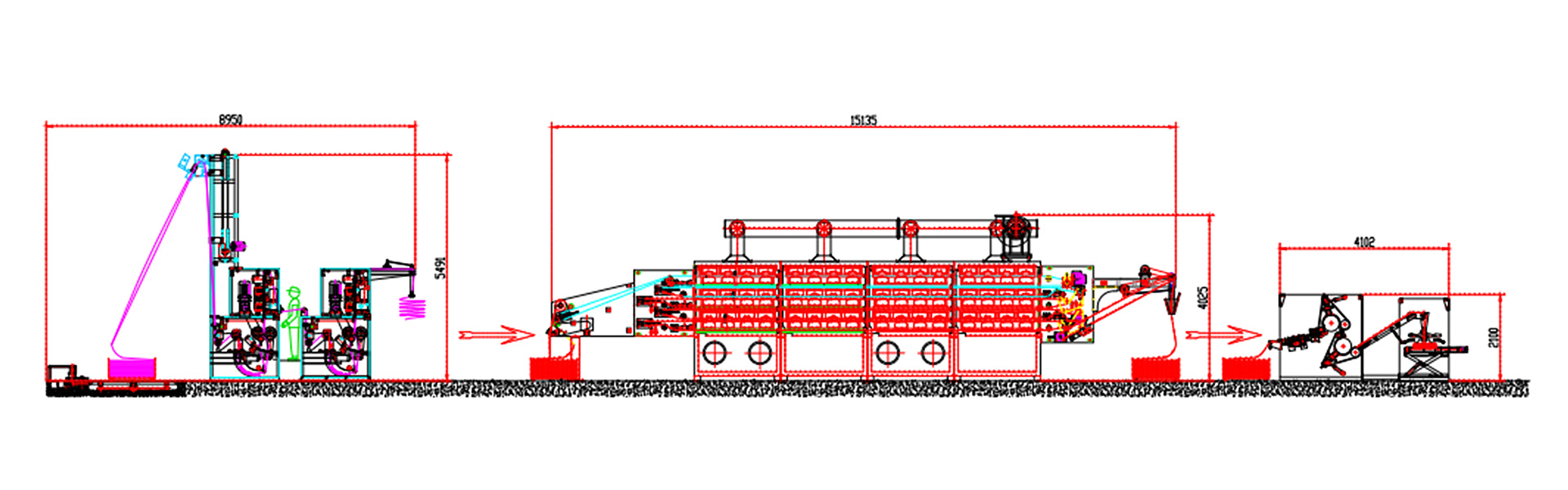

Mechanical Sketch:


Taipingyang Five Pass Relax Dryer Advantages:

Compared with our competitors,Dezhou Taipingyang five pass relax dryer has the following remarkable advantages and it is the reason of our market share is 80% in Chinese market.

➤ 40% higher output.The output of five pass relaxation dryer is 40% more than three pass relaxation dryer based on the same quantity chambers.

➤ Multi-direction air blowering.Our relax dryer air nozzles adopts Krantz design,with which truely achieve multi-direction three-dimensional blowing of fabrics.

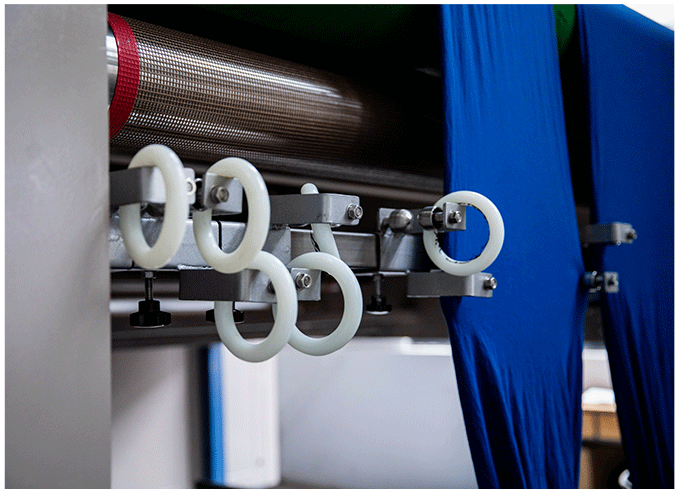

➤ 8%-10% shirinkage after dry process.Fabrics infeeding is with two times over infeeding structure,which will guarantee the fabrics without any tension when feeding.Meantime,middle of the chambers equips tumbling system,which will guarantee the fabrics moves in wave. So finally the fabrics shrinkage could be 8%-10% after the process of our five pass relax dryer machine.

➤ Output will not reduce by years later.Relax dryer chambers are dischargable,which will be easy to clean the dirties and fibers inside of the chamber. So after several years running,machine will not decrease its output.

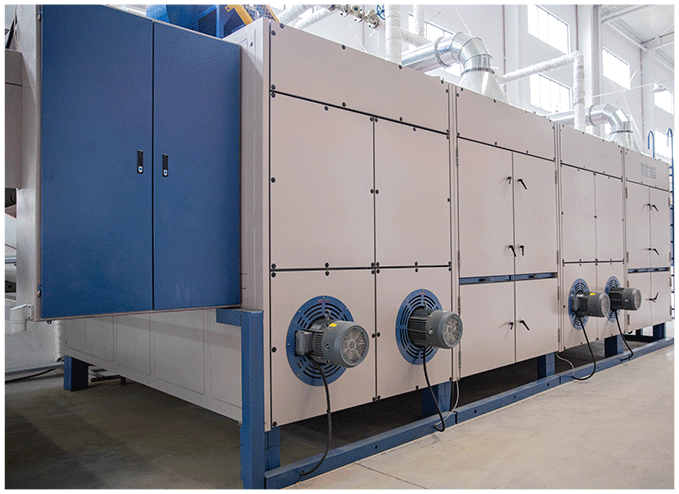

➤ Blower motors is easy to repair.The motor and impeller are fasten to 10mm steel plate by bolts,which is easy to repair the motor.

➤ Convoyor belt will not drift.Convoyor bets is with 4pcs hight temperature resistant travel switch,which will protect the belt drift.

➤ Hot air will not go outside by special nozzle design.

Special design of the entrance and exit of the air nozzles,which will prevent the hot air go outside.

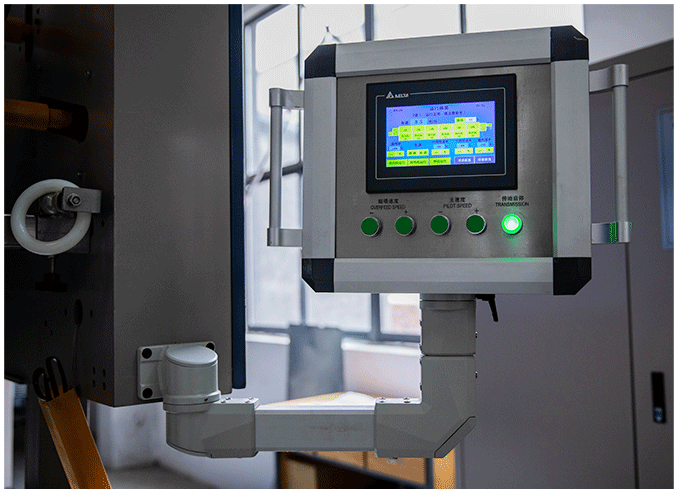

➤ Adopts PLC remote control,which could help customer to adjust the process online.

➤ Moisture sensor device is optional,connect with PLC,users can adjust the exhaust motors speed according to the moisture status,so as to save more energy.
